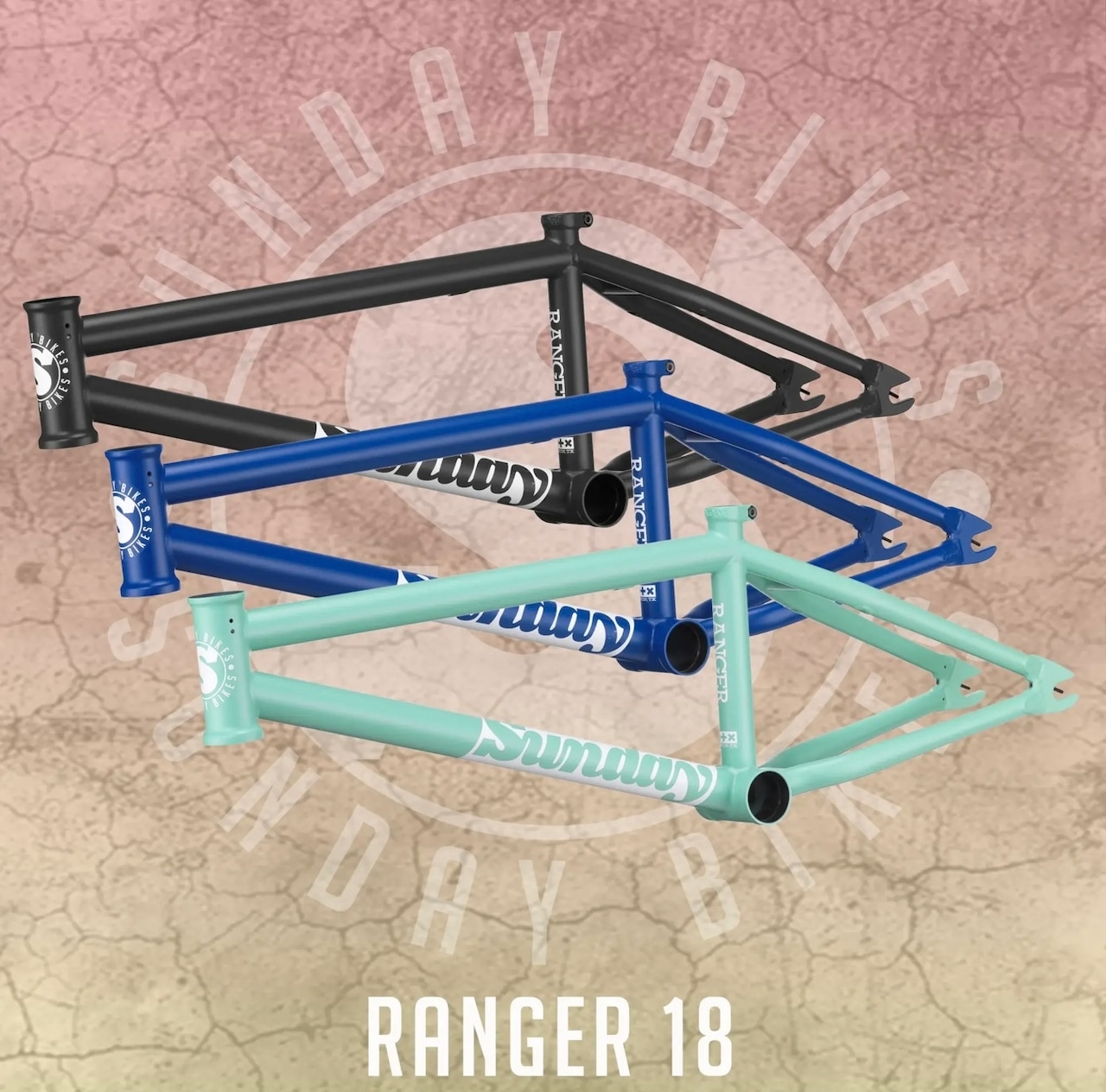

SUNDAY RANGER18 FRAME

若いBMXライダーが急速なスピードで上達を続ける中、彼らのための強くて機敏なフレームがこれまで以上に必要とされている。 Ranger18 "は、Sundayのアフターマーケットデザインに見られる伝統的な機能の数々を搭載し、このフルクロモリフレームは、短いチェーンステーによる操作性と、20 "バイクをスケールダウンしたようなプロレベルのフレームジオメトリーを提供する。
Ranger 18 "は、このサイズレンジのシリアスライダーにとってパーフェクトなフレームだ。

Features
100% 4130 Chromoly Frame
Proven pro-level geometry adjusted for 18” wheels.
Integrated seat clamp
Butted Seat Tube & Miter Cut Top Tube:
A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction.
Tapered Chain & Seat Stays:
Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.
Hollow Dropouts with Chain Tensioners:
Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal.
Removable Brake Hardware:
Proven, removable, brake mounts and cable guides/stops work flawlessly when installed and allow for a sleek overall look when they’re not.
Geometry
Top Tube Lengths: 18
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 11.70-12”
Bottom Bracket Height: 10.5”
Standover: 7.7”
Tire Clearance: 2.3”
Head Tube Length: 4.4"
